One-stop supply of parallel twin, conical twin and single screw barrels — machined in-house, inspected before packing, and built to match your machine model exactly.
Henan Xiwang Machinery Equipment Co., Ltd. supplies screw barrels and matched spare parts for plastic processing machinery worldwide. From material selection to final inspection, every set is built for stable plasticizing, long wear life and an exact fit to your machine.

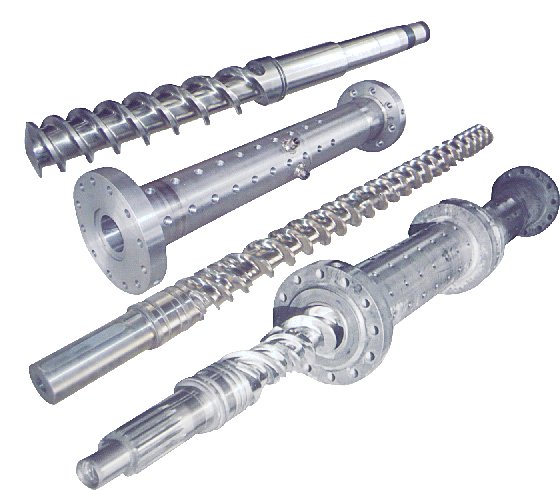

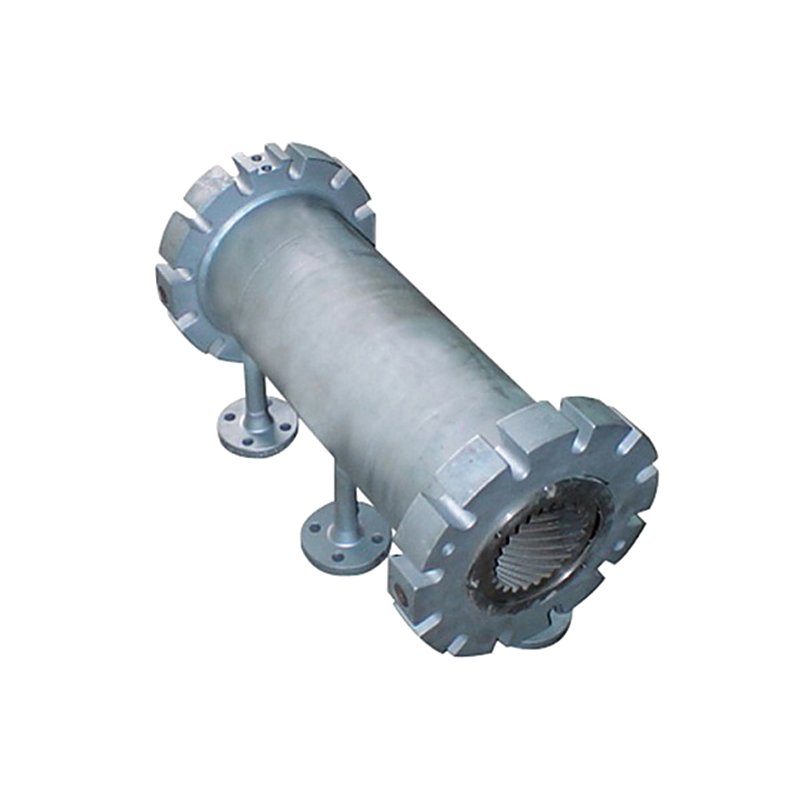

Injection, extrusion, twin screw, bimetallic, rubber and planetary — nine product lines for plastic and rubber processing machinery.
Custom sets for Engel, Arburg, Haitian, Toshiba and other machine brands.
Explore More →
Single screw barrels for film, pipe, sheet, pelletizing and cable lines.
Explore More →
For compounding, masterbatch and pelletizing with long wear life.
Explore More →
Counter-rotating sets 51/105 to 110/220 for PVC pipe, profile and sheet.
Explore More →

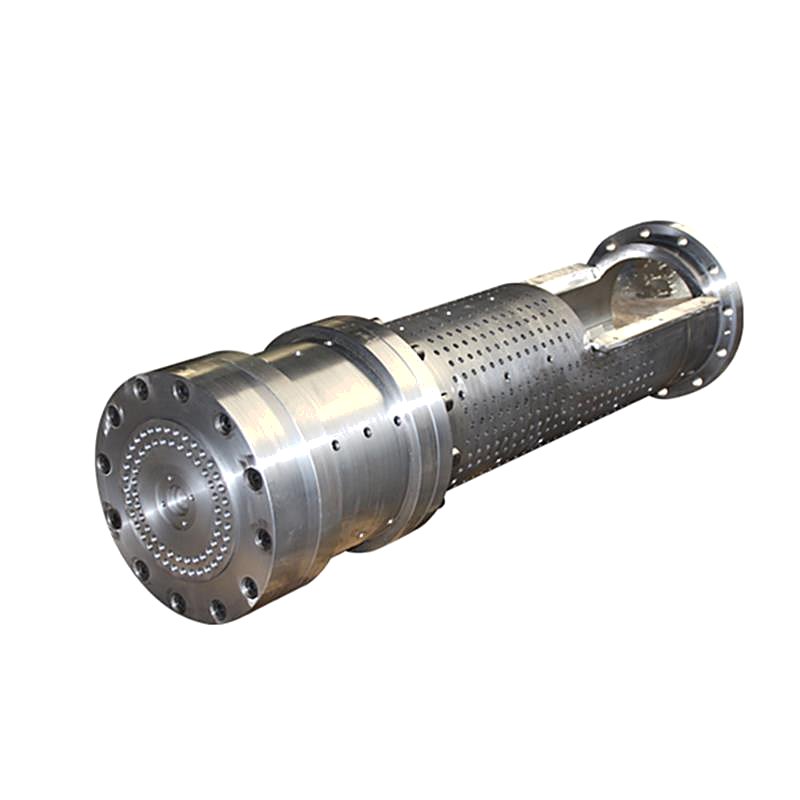

2–5 mm alloy-lined bore for recycled, filled and corrosive materials.
Explore More →
Screws, barrel liners and wear parts matched to your existing set.

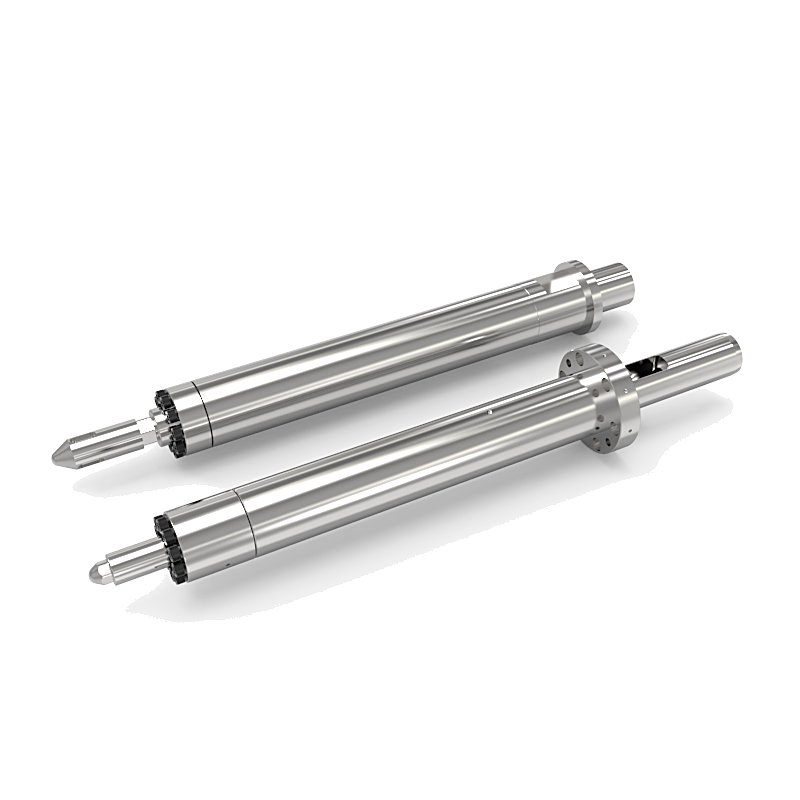

Explore More →Recently delivered sets from our workshop — typical of the sizes and configurations we produce.
Four things buyers care about most — material, accuracy, delivery and cost.
Nitrided and bimetallic options on 38CrMoAlA alloy steel for demanding, high-filler applications.
CNC finishing with controlled clearance and runout, so the set fits and runs smoothly on arrival.
In-house machining and heat treatment keep schedules under our own control, not a subcontractor's.
Direct supply from our workshop — no trading margin, with quotations returned quickly.
We build replacement screw and barrel sets matched to leading injection molding and extruder brands — send us your machine model and we will confirm the fit.
Send a drawing, a machine model or a worn part — we reverse-engineer and manufacture the matching set.
Rough machining, nitriding, finishing and inspection are completed under one roof with documented checks.
Rust-protected, wooden-case packing with clear marking, suitable for sea, air and express shipment.
Model matching, installation guidance and after-sales follow-up from a team that speaks your process.
Certified 38CrMoAlA and bimetallic steel, selected per application.
Turning, boring and milling to near-net shape and dimensions.
Nitriding or bimetallic lining for hardness and wear resistance.
CNC finishing of flights, bores and key tolerances.
Hardness, runout and dimension checks, then export packing.
Shipped with photos and documents; we follow up after installation.
A look at our machining and assembly floor — the sets below were produced and inspected here.

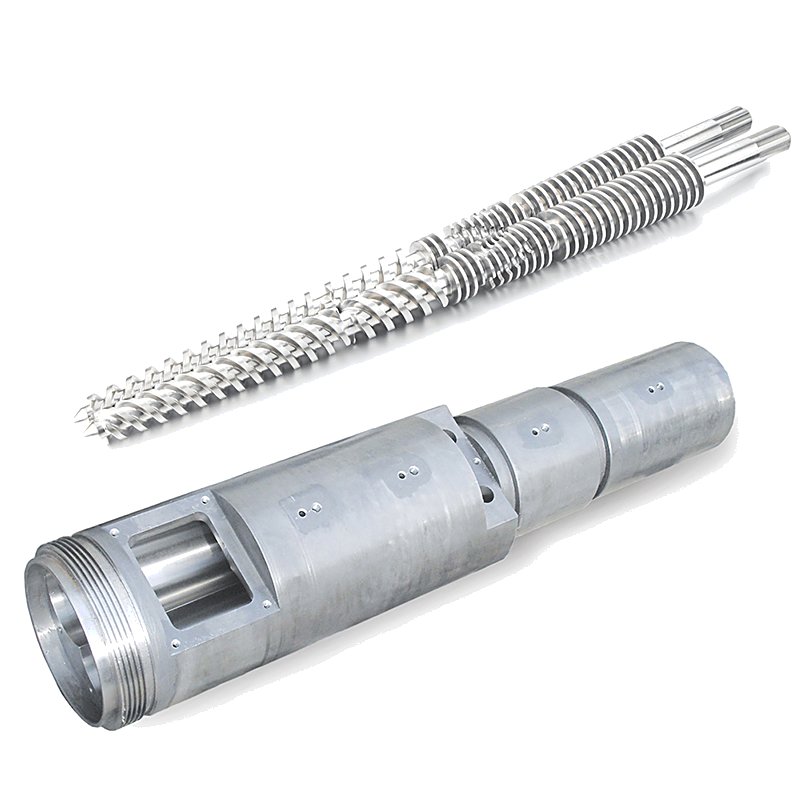

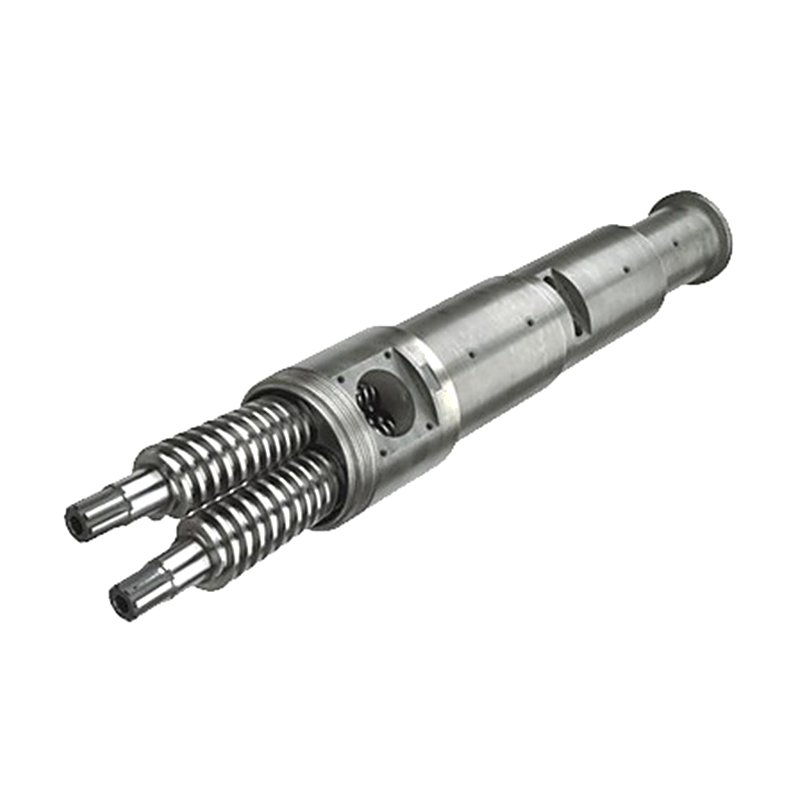

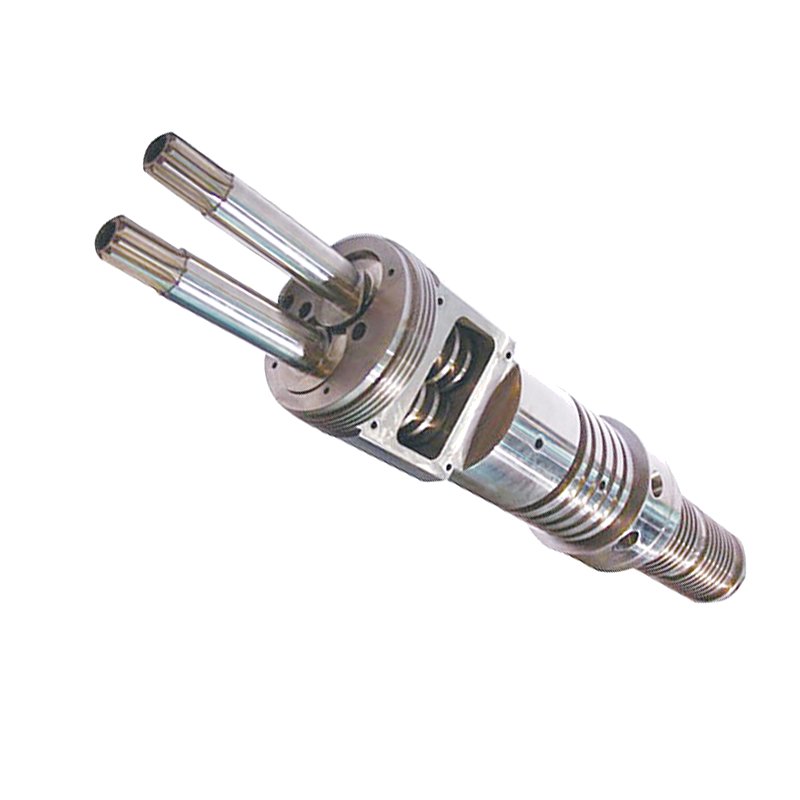

Conical twin sets for PVC pipe, window profile and sheet lines.

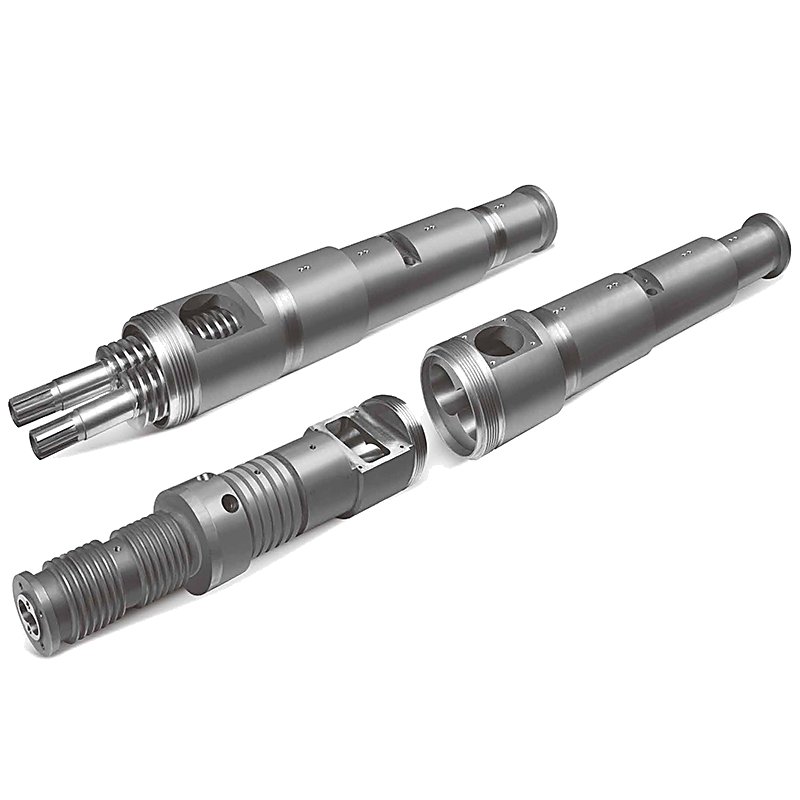

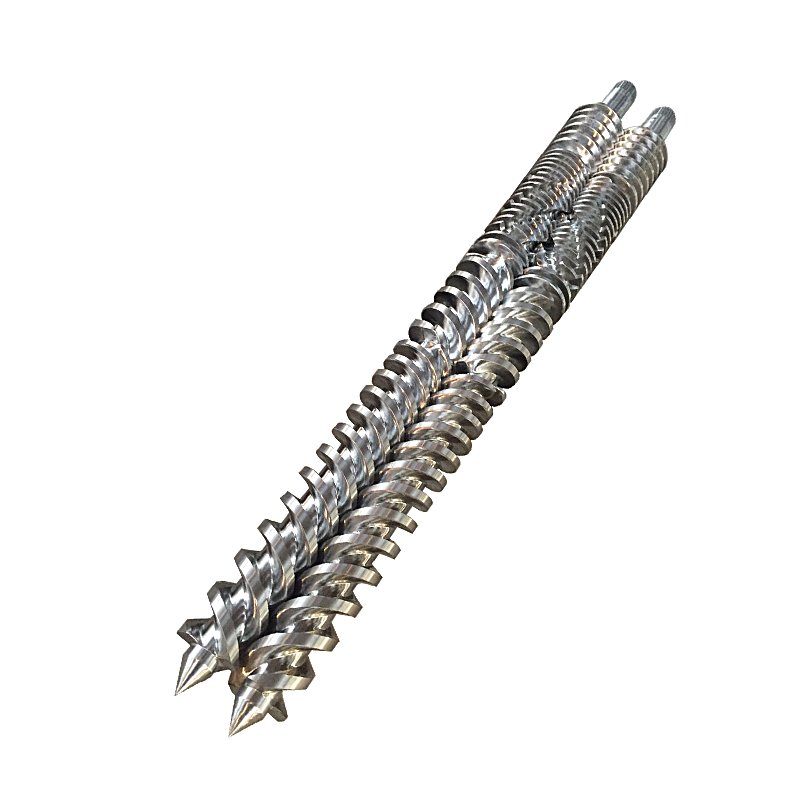

Parallel twin barrels built for high-filler and masterbatch runs.

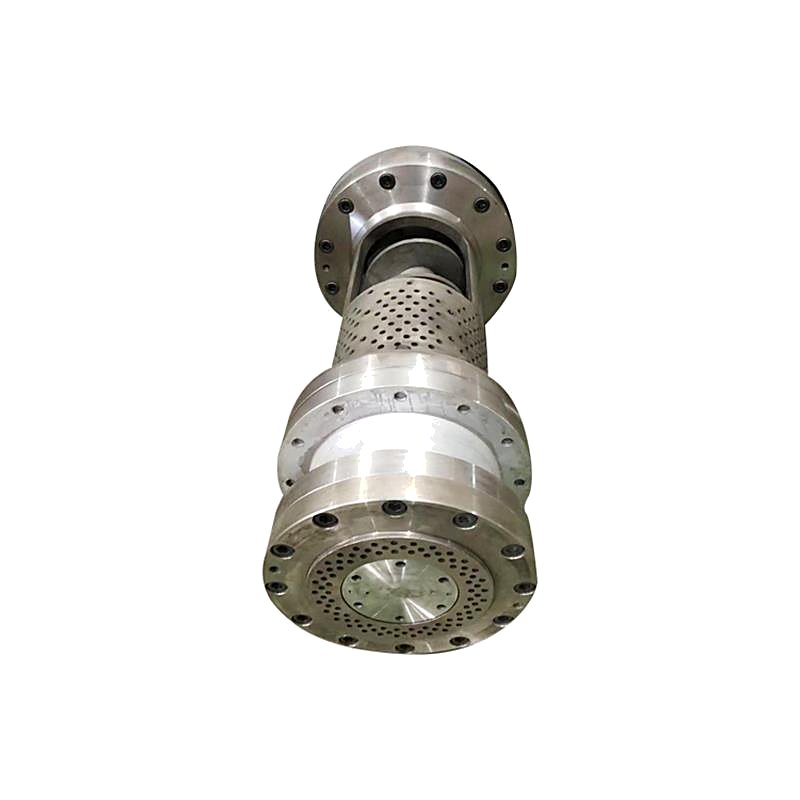

Single screw barrels with stable melting for film and sheet extrusion.

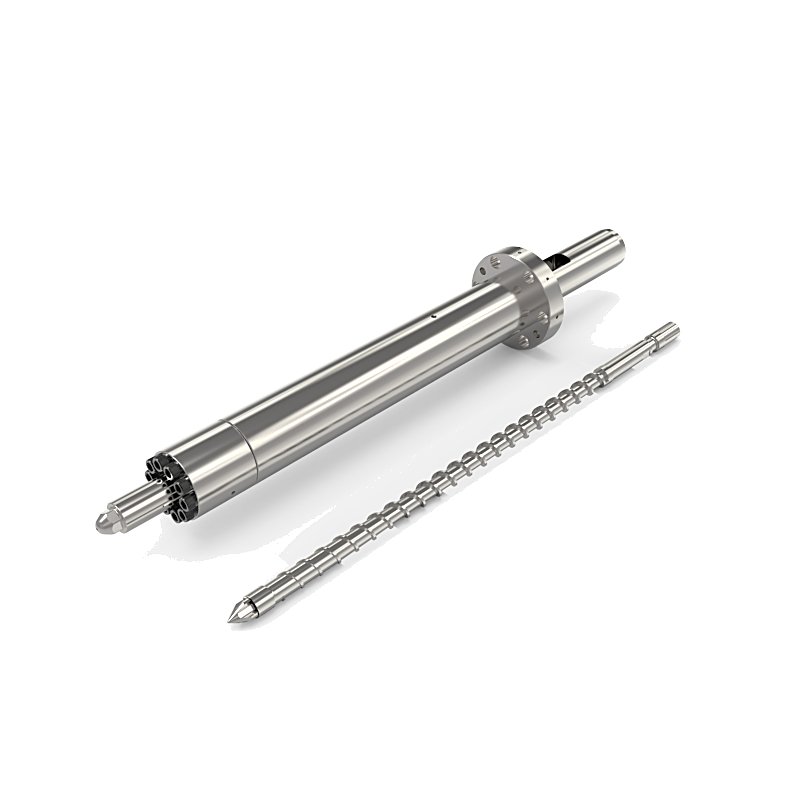

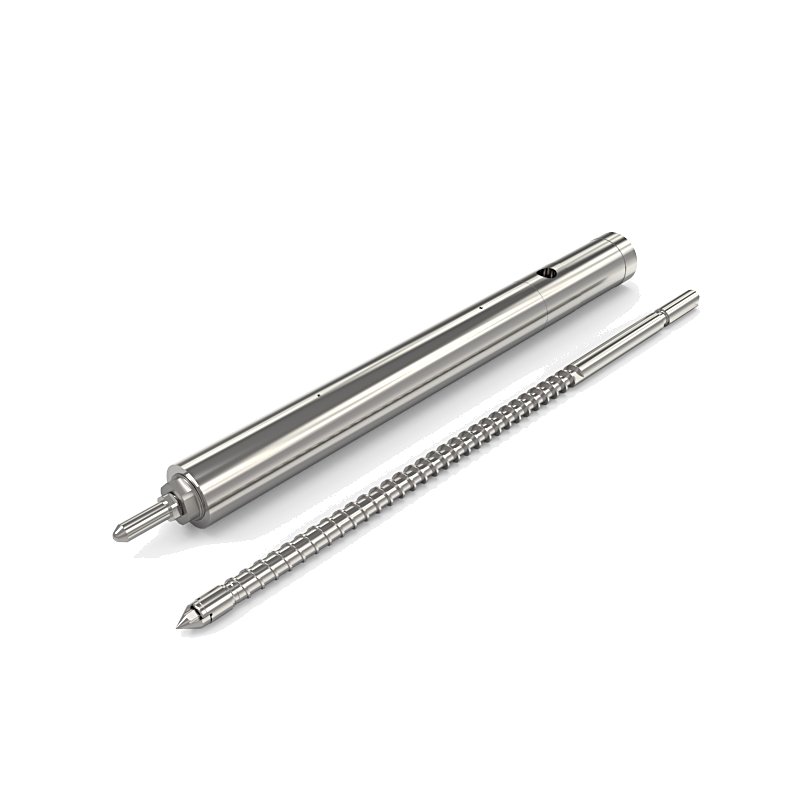

Screw and barrel sets for injection machines, wear-resistant linings available.
Heavy-duty barrels for abrasive recycled materials and high wear.
Single screw sets for bottle and container blow molding applications.

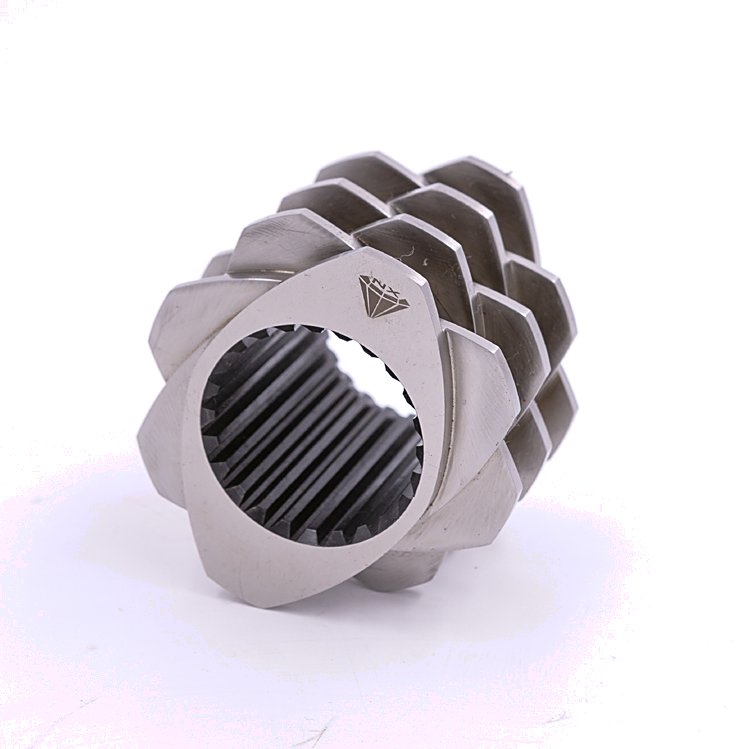

Special screw barrels for XPS foam insulation board production.
Screw barrels for cable sheathing and insulation extrusion lines.
Screws and barrels for WPC profile and board extrusion, with high wear protection.
Choosing the wrong barrel alloy is the single most expensive mistake in screw barrel buying — it costs you twice in downtime and in a second set. This is the comparison we use when we quote.
| Item | Nitrided (38CrMoAlA) | Bimetallic Alloy | Full-Hard / Stainless |
|---|---|---|---|
| Surface hardness | HV 900–1100 | HV 1000–1300 with WC particles | HRC 58–62 |
| Hardened depth | 0.30–0.60 mm | 2–5 mm cast alloy layer | Through hardened |
| Best for | PE, PP, ABS, PS, general purpose | Glass-filled, flame retardant, recycled, PVC, mineral filled | Food contact, medical, strongly corrosive |
| Relative service life | 1× baseline | 3–8× | 2–4× |
| Cost index | Lowest | Medium | Higher |
| Lead time | Shortest | + Centrifugal casting cycle | Depends on grade |
Different resins destroy barrels in different ways — glass fibre cuts, PVC corrodes, regrind does both. Tell us what you run and we will specify the screw geometry and alloy to match.
Tell us your machine model, drawing or the worn part you need to replace. We will come back with a matching proposal and a quotation.
Fields marked * are required.
Yes. Send us a drawing, the machine model, or the worn part with basic dimensions. We reverse-engineer the geometry and manufacture a matched set, confirming the drawing with you before production.
Standard options include 38CrMoAlA nitrided steel and bimetallic (alloy-lined) barrels. We select the material based on your resin, filler content and expected service life.
Lead time depends on size, material and heat treatment. Because machining is done in-house, we can confirm a realistic schedule with the quotation rather than an estimate.
Each set is rust-protected, fixed inside a fumigation-free wooden case with clear marking, suitable for sea, air and express shipment.
Typical signs: falling output, unstable melt quality, higher drive load, or visible wear at the feed and compression zones. Send us the worn set or its dimensions — we will assess the wear and quote a matched replacement.
Yes. We regularly build sets matched to Engel, Arburg, Haitian, Toshiba, Sumitomo, JSW and other injection brands, as well as KraussMaffei, Bausano, Reifenhäuser and other extruder brands. Send the machine model to confirm compatibility.
Typical signs: falling output, unstable melt quality, higher drive load, or visible wear at the feed and compression zones. Send us the worn set or its dimensions — we will assess the wear and quote a matched replacement.
Yes. We regularly build sets matched to Engel, Arburg, Haitian, Toshiba, Sumitomo, JSW and other injection brands, as well as KraussMaffei, Bausano, Reifenhäuser and other extruder brands. Send the machine model to confirm compatibility.
Yes. Screws, barrel liners, feed sections and other wear parts can be supplied separately, matched to the dimensions of your existing set.
